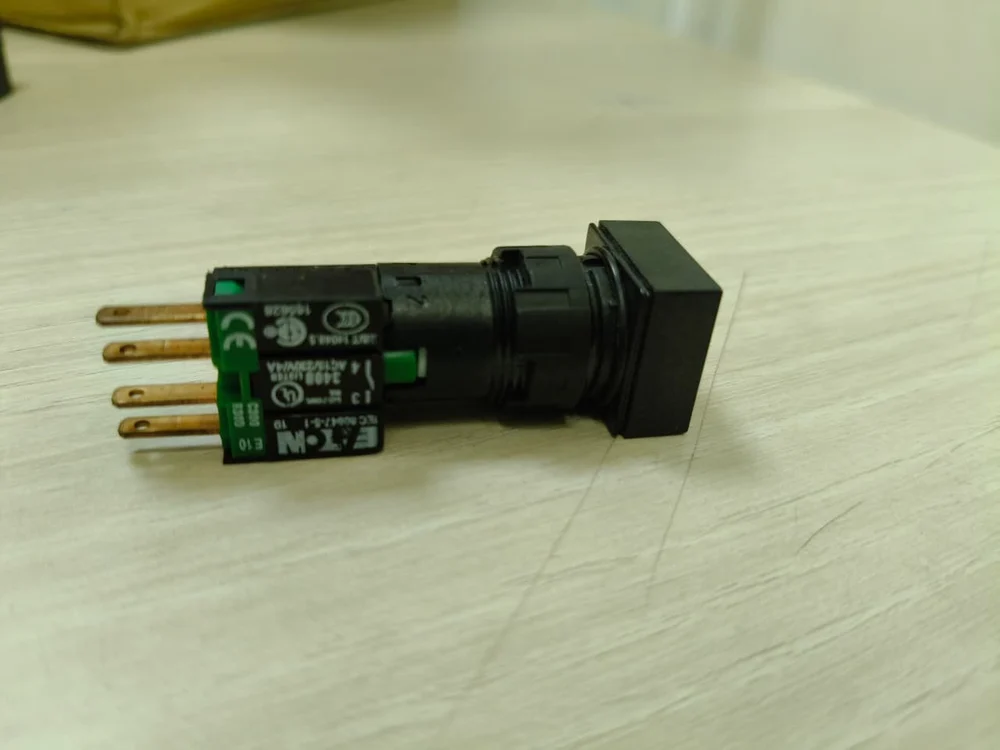

ICE 60947-5-1 Push Button

IEC 60947-5-1 Push Button

✔ICE 60947-5-1 Push Button
✔ Durable Industrial-Grade Construction
✔ Available in Momentary and Maintained Action Types
✔ Normally Open (NO) and Normally Closed (NC) Contact Options
✔ High Mechanical & Electrical Endurance
✔ Easy Panel Mount Installation
✔ Suitable for PLC, CNC, and Automation Applications
✔ Available with Illuminated and Non-Illuminated Actuators

Technical Specifications

Product Name: Industrial Push Button
Standard: IEC 60947-5-1
Contact Configuration: 1NO, 1NC, 1NO+1NC (Model Dependent)
Operation Type: Momentary / Maintained
Mounting Diameter: 22mm (Common Industrial Standard)
Rated Operational Voltage (Ue): Up to 690V AC
Rated Operational Current (Ie): Up to 10A
Utilization Category: AC-15 / DC-13
Protection Rating: IP65 Front Protection
Mechanical Life: Up to 1,000,000 Operations
Electrical Life: Up to 100,000 Operations
Body Material: High-Strength Thermoplastic / Metal Bezel Option
Terminal Type: Screw Clamp / Fast Connect
