Fanuc, IGBT MODULE

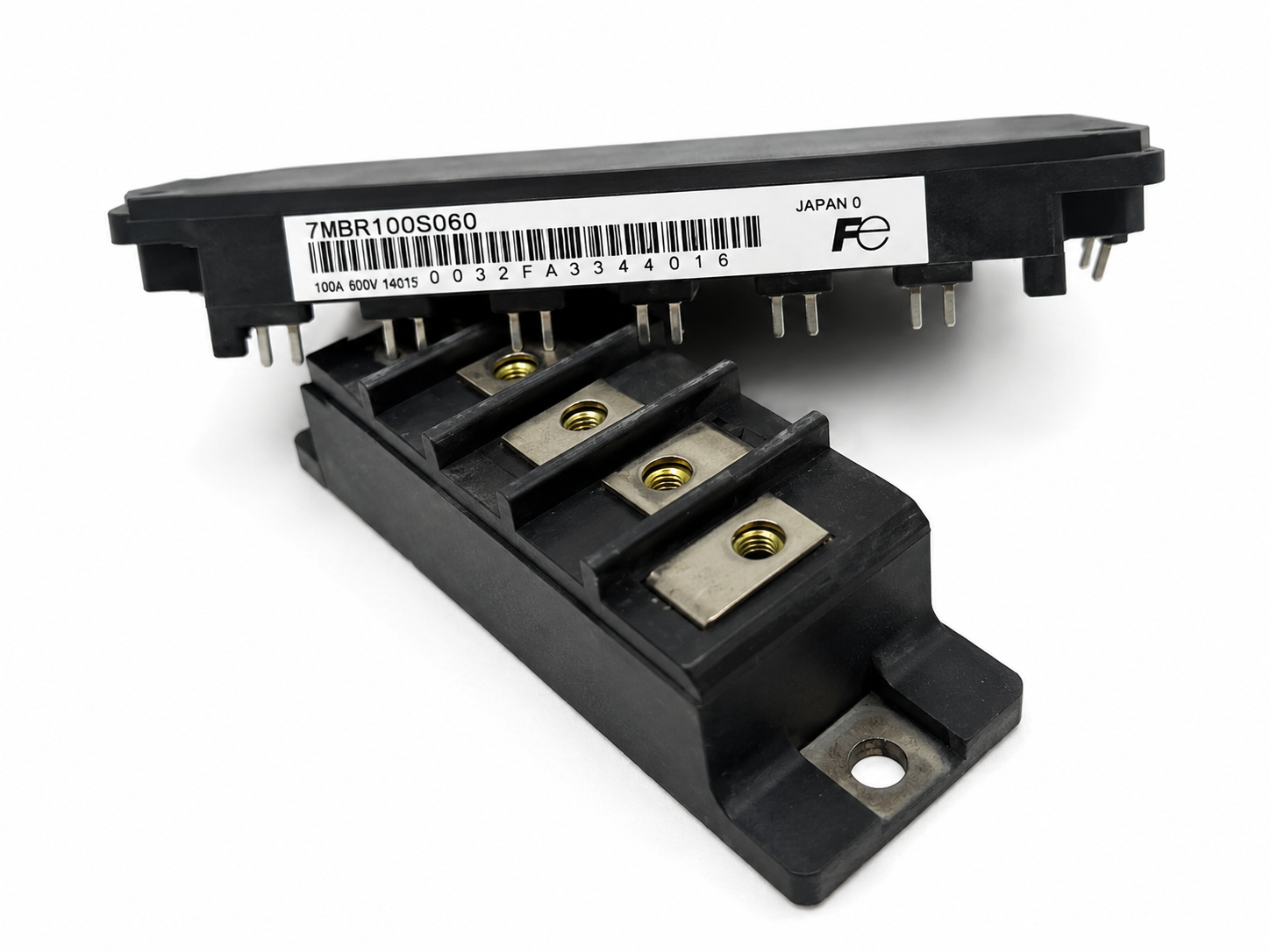

Fuji 7MBR100SD060 IGBT Module
- Voltage Rating: \(600V\)
- Current Rating (\(I_{c}\)): \(100A\) (Continuous at \(T_c=80^\circ C\))
- Collector-Emitter Saturation Voltage (\(V_{CE(sat)}\)): \(2.2V\) (Typical) to \(2.7V\) (Maximum) at \(I_c=100A, V_{GE}=15V\)
- Configuration: PIM (Power Integrated Module) with 3-phase converter, 3-phase inverter, and dynamic brake circuit
- Package Type: P.C. Board Mount Module (compact)
- Applications: General-purpose inverters, motor drives, AC/DC servo drives, and UPS systems
